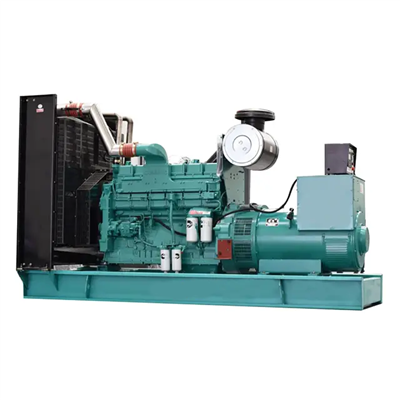

Cynhyrchydd Diesel gydag Injan WEICHAI
Model: SC30WCF-SC3750WCF
Pŵer Cyfradd(kw): 24-3000
Injan: WEICHAI Engine
Nifer y Silindr: 12-16
Cyflwyniad Cynnyrch
| Math Agored | Math gwrthsain | CSA | PRP | Model Injan | Cyl | Dadleoli | Dimensiwn Math Agored | Pwysau | Soundproo | Pwysau |
| KW | KW | L | Mm | Kg | Mm | Kg | ||||
| SC30WCF | SC30WCE | 30 | 24 | 4M08G8D3/5 | 4 | 3.2 | 1550*850*1120 | 640 | 2000*1000*1240 | 870 |
| SC38WCF | SC38WCE | 36 | 30 | 4M08G10D3/5 | 4 | 3.2 | 1700*850*1120 | 720 | 2600*1100*1360 | 980 |
| SC63WCF | SC63WCE | 55 | 50 | 4M10G2D3/5 | 4 | 4.088 | 1950*850*1420 | 1030 | 2600*1100*1360 | 1330 |
| SC80WCF | SC80WCE | 70 | 64 | 4M10G4D3/5 | 4 | 4.088 | 1950*850*1420 | 1090 | 2600*1100*1360 | 1390 |
| SC100WCF | SC100WCE | 88 | 80 | 4M10G6D3/5 | 4 | 4.088 | 1950*850*1420 | 1370 | 2600*1100*1360 | 1680 |
| SC113WCF | SC113WCE | 100 | 90 | 4M12G1D3/5 | 4 | 4.58 | 2000*1000*1200 | 1410 | 2600*1100*1360 | 1850 |
| SC125WCF | SC125WCE | 120 | 100 | 4M12G2D3/5 | 4 | 4.58 | 2000*1000*1200 | 1410 | 2600*1100*1360 | 1850 |
| SC150WCF | SC150WCE | 132 | 120 | 4M12G4D3/5 | 4 | 4.58 | 2000*1000*1200 | 1410 | 2600*1100*1360 | 1850 |
| SC188WCF | SC188WCE | 160 | 150 | 6M12G2D3/5 | 6 | 7.47 | 2900*1100*1750 | 2060 | 3500*1300*1950 | 2570 |
| SC225WCF | SC225WCE | 200 | 180 | 6M12G6D3/5 | 6 | 7.47 | 2900*1100*1750 | 2180 | 3500*1300*1950 | 2690 |
| SC250WCF | SC250WCE | 220 | 200 | 6M12G8D3/5 | 6 | 7.47 | 2900*1100*1750 | 2210 | 3500*1300*1950 | 2720 |
| SC313WCF | SC313WCE | 280 | 250 | 6M16G8D3/5 | 6 | 9.7 | 3200*1250*1800 | 3050 | 3800*1400*2150 | 3530 |
| SC375WCF | SC375WCE | 320 | 300 | 6M21G2D3/5 | 6 | 12.54 | 3200*1250*1800 | 3150 | 3800*1400*2150 | 3630 |
| SC438WCF | SC438WCE | 400 | 350 | 6M21G6D3/5 | 6 | 12.54 | 3200*1300*1950 | 3350 | 3800*1400*2150 | 3800 |
| SC500WCF | SC500WCE | 440 | 400 | 6M21G8D3/5 | 6 | 12.54 | 3200*1300*1950 | 3390 | 3800*1400*2150 | 3840 |
| SC650WCF | SC650WCE | 580 | 520 | 6M33G6D3/5 | 6 | 19.6 | 3900*1700*2300 | 5160 | 4800*1900*2540 | 6500 |
| SC750WCF | SC750WCE | 650 | 600 | 6M33G8D3/5 | 6 | 19.6 | 3900*1700*2300 | 5470 | 4800*1900*2540 | 6770 |
| SC800WCF | SC800WCE | 700 | 640 | 8M33G2D3/5 | 8 | 26.14 | 4100*1900*2300 | 6950 | 5800*2250*2540 | 9190 |
| SC900WCF | SC900WCE | 800 | 720 | 8M33G4D3/5 | 8 | 26.14 | 4100*1900*2300 | 7100 | 5800*2250*2540 | 9340 |
| SC1000WCF | SC1000WCE | 880 | 800 | 8M33G6D3/5 | 8 | 26.14 | 4100*1900*2300 | 7250 | 5800*2250*2540 | 9490 |
| SC1125WCF | SC1125WCE | 1000 | 900 | 12M33G6D3/5 | 12 | 39.2 | 4850*2200*2500 | 8530 | 6058*2438*2896 | 12220 |
| SC1250WCF | SC1250WCE | 1100 | 1000 | 12M33G8D3/5 | 12 | 39.2 | 4850*2200*2500 | 8550 | 6058*2438*2896 | 12240 |
| SC1375WCF | SC1375WCE | 1200 | 1100 | 12M33G10D3/5 | 12 | 39.2 | 4850*2200*2500 | 8750 | 6058*2438*2896 | 12440 |
| SC1550WCF | SC1550WCE | 1360 | 1240 | 16M33G0D3/5 | 16 | 52.3 | 4850*2200*2500 | 9010 | 6058*2438*2896 | 12700 |
| SC1750WCF | SC1750WCE | 1520 | 1400 | 16M33G4D3/5 | 16 | 523 | 5500*2250*2740 | 13450 | 12192*2438*2896 | 20800 |
| SC1875WCF | SC1875WCE | 1650 | 1500 | 16M33G6D3/5 | 16 | 52.3 | 5500*2250*2740 | 14100 | 12192*2438*2896 | 21400 |
| SC2000WCF | SC2000WCE | 1800 | 1600 | 16M33G8D3/5 | 16 | 52.3 | 5500*2250*2740 | 14100 | 12192*2438*2896 | 21400 |
| SC2000WCF | SC2000WCE | 1800 | 1600 | 20M33G2D3/5 | 20 | 65.4 | 7010*2680*2980 | 18400 | 12192*2438*2896 | 28400 |
| SC2250WCF | SC2250WCE | 2000 | 1800 | 20M33G4D3/5 | 20 | 65.4 | 7010*2680*2980 | 18400 | 12192*2438*2896 | 28400 |
| SC2250WCF | SC2250WCE | 2000 | 1800 | 12M55G2D3/5 | 12 | 65.65 | 6600*2680*2980 | 21110 | 12192*2438*2896 | 31110 |
| SC2500WCF | SC2500WCE | 2200 | 2000 | 12M55G2D3/5 | 12 | 65.65 | 6600*2680*2980 | 22000 | 12192*2438*2896 | 32000 |
| SC2750WCF | SC2750WCE | 2400 | 2200 | 12M55G6D3/5 | 12 | 65.65 | 6600*2680*2980 | 22400 | 12192*2438*2896 | 32400 |
| SC2800WCF | SC2800WCE | 2464 | 2240 | 16M55 Duw 3% 2f5 | 16 | 87.5 | 7090*3000*3580 | 25300 | 12192*2438*2896 | 35300 |
| SC3000WCF | SC3000WCE | 2650 | 2400 | 16M55G2D3/5 | 16 | 87.5 | 7090*3000*3580 | 25400 | 12192*2438*2896 | 35400 |
| SC3250WCF | SC3250WCE | 3000 | 2600 | 16M55G4D3/5 | 16 | 87.5 | 7090*3000*3580 | 25500 | 12192*2438*2896 | 35500 |
| SC3750WCF | SC3750WCE | 3300 | 3000 | 16M55G6D3/5 | 16 | 87.5 | 7290*3000*3760 | 26500 | 12192*2438*2896 | 36500 |
| SC23WCF | SC23WCE | 20 | 18 | 4M06G20/6 | 4 | 23 | 1500*800*1120 | 580 | 2000*1000*1240 | 830 |
| SC29WCF | SC29WCE | 25 | 23 | 4M06G25/6 | 4 | 23 | 1500*800*1120 | 590 | 2000*1000*1240 | 830 |
| SC38WCF | SC38WCE | 33 | 30 | 4MO6G33/6 | 4 | 23 | 1550*850*1120 | 640 | 2000*1000*1240 | 870 |
| SC46WCF | SC46WCE | 41 | 37 | 4M06G41/6 | 4 | 23 | 1550*850*1120 | 700 | 2000*1000*1240 | 940 |
| SC56WCF | SC56WCE | 50 | 45 | 4M06G50/6 | 4 | 23 | 1700*850*1120 | 760 | 2200*1000*1240 | 1020 |
| SC63WCF | SC63WCE | 55 | 50 | 4MO6G55% 2f6 | 4 | 23 | 1700*850*1120 | 760 | 2200*1000*1240 | 1020 |
| SC94WCF | SC94WCE | 80 | 75 | 4M10G83/6 | 4 | 4.087 | 1950*850*1420 | 1070 | 2600*1100*1360 | 1370 |
| SC113WCF | SC113WCE | 100 | 90 | 4M10G100/6 | 4 | 4.087 | 1950*850*1420 | 1100 | 2600*1100*1360 | 1410 |
| SC125WCF | SC125WCE | 110 | 100 | 6M11G110/6 | 6 | 6.75 | 2500*950*1450 | 1440 | 3000*1100*1700 | 1840 |
| SC150WCF | SC150WCE | 132 | 120 | 6M11G135/6 | 6 | 6.75 | 2500*950*1450 | 1490 | 3000*1100*1700 | 1890 |
| SC181WCF | SC181WCE | 160 | 145 | 6M11G160/6 | 6 | 6.75 | 2500*950*1450 | 1540 | 3000*1100*1700 | 1940 |
| SC200WCF | SC200WCE | 176 | 160 | 6M11G176/6 | 6 | 6.75 | 2500*950*1450 | 1590 | 3000*1100*1700 | 1990 |
| SC225WCF | SC225WCE | 200 | 180 | 6M16G200/6 | 6 | 9.726 | 2700*1050*1730 | 2050 | 3500*1300*1950 | 2560 |
| SC250WCF | SC250WCE | 220 | 200 | 6M16G220/6 | 6 | 9.726 | 2700*1050*1730 | 2200 | 3500*1300*1950 | 2700 |
| SC284WCF | SC284WCE | 250 | 227 | 6M16G250/6 | 6 | 9.726 | 2700*1050*1730 | 2210 | 3500*1300*1950 | 2720 |
| SC350WCF | SC350WCE | 308 | 280 | 6M16G308/6 | 6 | 9.726 | 2900*1150*1750 | 2460 | 3800*1300*2050 | 3090 |
| SC375WCF | SC375WCE | 330 | 300 | 6M21G330/6 | 6 | 12.54 | 3200*1250*1800 | 2990 | 3800*1400*2150 | 3460 |
| SC438WCF | SC438WCE | 390 | 350 | 6M21G390/6 | 6 | 12.54 | 3200*1250*1800 | 3130 | 3800*1400*2150 | 3610 |
| SC450WCF | SC450WCE | 400 | 360 | 6M21G400/6 | 6 | 12.54 | 3200*1250*1800 | 3140 | 3800*1400*2150 | 3620 |
| SC500WCF | SC500WCE | 440 | 400 | 6M21G460/6 | 6 | 12.54 | 3200*1250*1800 | 3360 | 3800*1400*2150 | 3810 |
| SC650WCF | SC650WCE | 575 | 520 | 6M33G575/6 | 6 | 19.6 | 3900*1700*2300 | 4980 | 4800*1900*2540 | 6320 |
| SC688WCF | SC688WCE | 600 | 550 | 6M33G600/6 | 6 | 19.6 | 3900x1700*2300 | 4980 | 4800*1900*2540 | 6320 |
| SC719WCF | SC719WCE | 630 | 575 | 6M33G633/6 | 6 | 19.6 | 3900x1700*2300 | 5160 | 4800*1900*2540 | 6500 |
| SC750WCF | SC750WCE | 660 | 600 | 6M33G660/6 | 6 | 19.6 | 3900x1700*2300 | 5160 | 4800*1900*2540 | 6500 |
| SC750WCF | SC750WCE | 660 | 600 | 12M26G660/6 | 12 | 31.8 | 4500x1850*2450 | 5160 | 5800*2250*2540 | 6500 |
| SC800WCF | SC800WCE | 704 | 640 | 12M26G704/6 | 12 | 31.8 | 4500x1850*2450 | 5160 | 5800*2250*2540 | 6500 |
| SC900WCF | SC900WCE | 800 | 720 | 8M33G800/6 | 8 | 26.1 | 4500x1850*2450 | 6950 | 5800*2250*2540 | 9190 |
| SC900WCF | SC900WCE | 800 | 720 | 12M26G800/6 | 12 | 31.8 | 4100*1900*2300 | 6950 | 5800*2250*2540 | 9190 |
| SC950WCF | SC950WCE | 840 | 760 | 8M33G840/6 | 8 | 26.1 | 4100*1900*2300 | 7100 | 5800*2250*2540 | 9340 |
| SC1000WCF | SC1000WCE | 900 | 800 | 12M26G900/6 | 12 | 31.8 | 4500*1850*2450 | 7100 | 5800*2250*2540 | 9340 |
| SC1138WCF | SC1138WCE | 1000 | 910 | 12M26G1000/6 | 12 | 31.8 | 4500*1850*2450 | 7250 | 5800*2250*2540 | 9500 |
| SC1125WCF | SC1125WCE | 1000 | 900 | 12M33G1000/6 | 12 | 39.2 | 4850*2200*2500 | 8530 | 6058*2438*2896 | 12220 |
| SC1250WCF | SC1250WCE | 1100 | 1000 | 12M33G1100/6 | 12 | 39.2 | 4850*2200*2500 | 8530 | 6058*2438*2896 | 12220 |
| SC1365WCF | SC1365WCE | 1200 | 1092 | 12M33G1200/6 | 12 | 39.2 | 4850*2200*2500 | 8550 | 6058*2438*2896 | 12240 |
| SC1470WCF | SC1470WCE | 1300 | 1176 | 12M33G1300/6 | 12 | 39.2 | 4850*2200*2500 | 8650 | 6058*2438*2896 | 12340 |
| SC1500WCF | SC1500WCE | 1320 | 1200 | 12M33G1320/6 | 12 | 39.2 | 4850*2200*2500 | 8750 | 6058*2438*2896 | 12440 |
| SC1706WCF | SC1706WCE | 1500 | 1365 | 16M33G1500/6 | 16 | 523 | 5500*2250*2740 | 12900 | 12192*2438x2896 | 20200 |
| SC1875WCF | SC1875WCE | 1650 | 1500 | 16M33G1650/6 | 16 | 523 | 5500*2250*2740 | 13200 | 12192*2438x2896 | 20500 |
| SC2000WCF | SC2000WCE | 1750 | 1600 | 16M33G1750/6 | 16 | 523 | 5500*2250*2740 | 15800 | 12192*2438x2896 | 21400 |
| SC2250WCF | SC2250WCE | 2000 | 1800 | 20M33G2000/6 | 20 | 65.4 | 7010*2680*2980 | 18400 | 12192*2438x2896 | 28400 |
| SC2500WCF | SC2500WCE | 2200 | 2000 | 20M33G2200/6 | 20 | 65.4 | 7010*2680*2980 | 18400 | 12192*2438x2896 | 28400 |
| SC2556WCF | SC2556WCE | 2250 | 2045 | 12M55G2250/6 | 12 | 65.65 | 6600*2680*2980 | 21110 | 12192*2438x2896 | 31110 |
| SC2813WCF | SC2813WCE | 2500 | 2250 | 12M55G2500/6 | 12 | 65.65 | 6600*2680*2980 | 22000 | 12192*2438x2896 | 32000 |
| SC3000WCF | SC3000WCE | 2640 | 2400 | 16M55G2640/6 | 16 | 87.5 | 7090x3000x3580 | 25300 | 12192*2438x2896 | 35300 |
| SC3200WCF | SC3200WCE | 2800 | 2560 | 16M55G2800/6 | 16 | 87.5 | 7090x3000x3580 | 25400 | 12192*2438x2896 | 35400 |
| SC3300WCF | SC3300WCE | 3000 | 2640 | 16M55G3000/6 | 16 | 875 | 7090x3000x3580 | 25500 | 12192*2438x2896 | 35500 |
| SC3750WCF | SC3750WCE | 3300 | 3000 | 16M55G3300/6 | 16 | 87.5 | 7290x3000x3760 | 26500 | 12192*2438x2896 | 36500 |
